Product Description

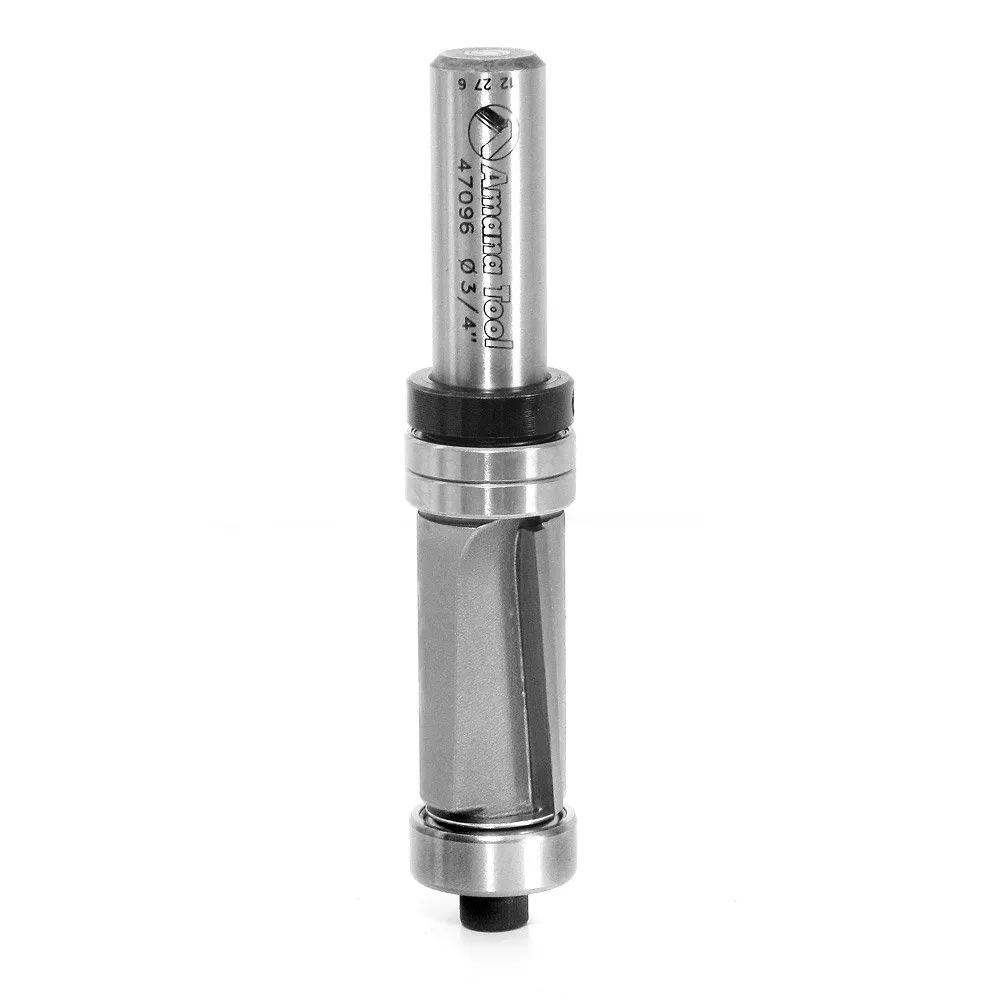

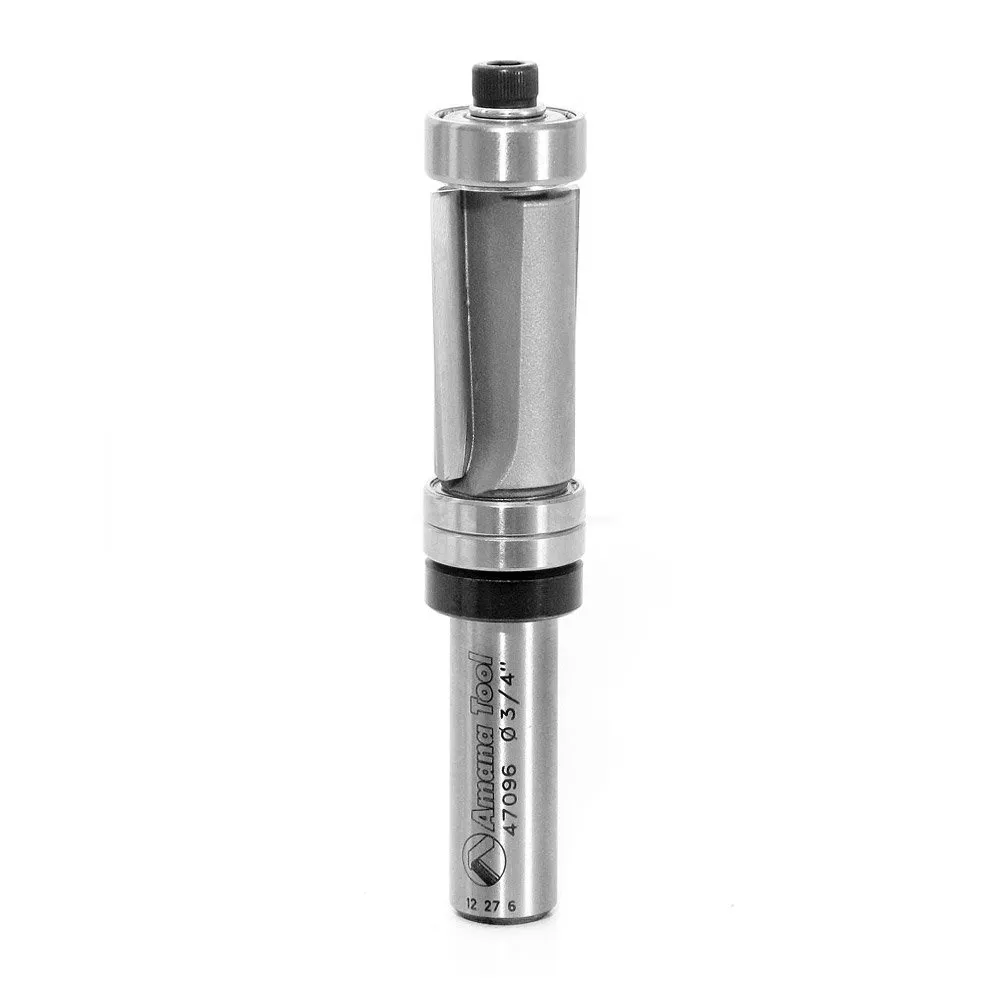

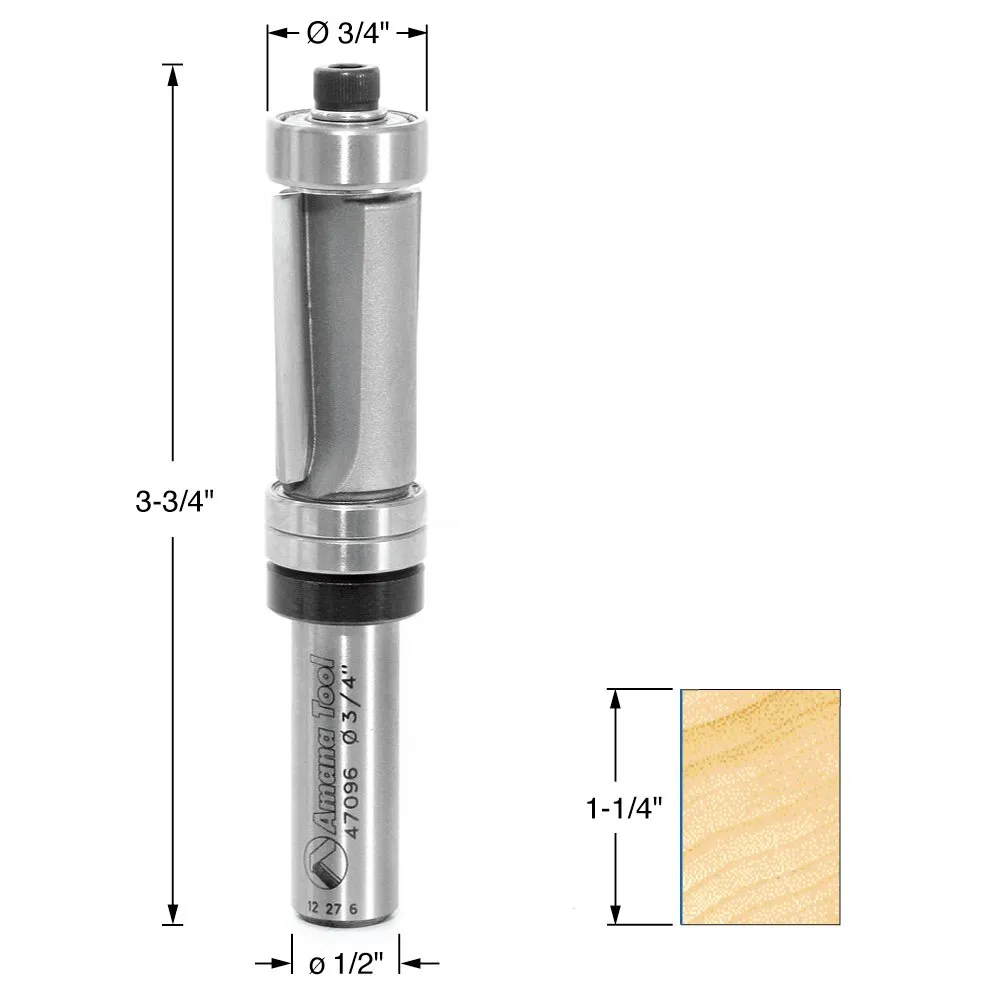

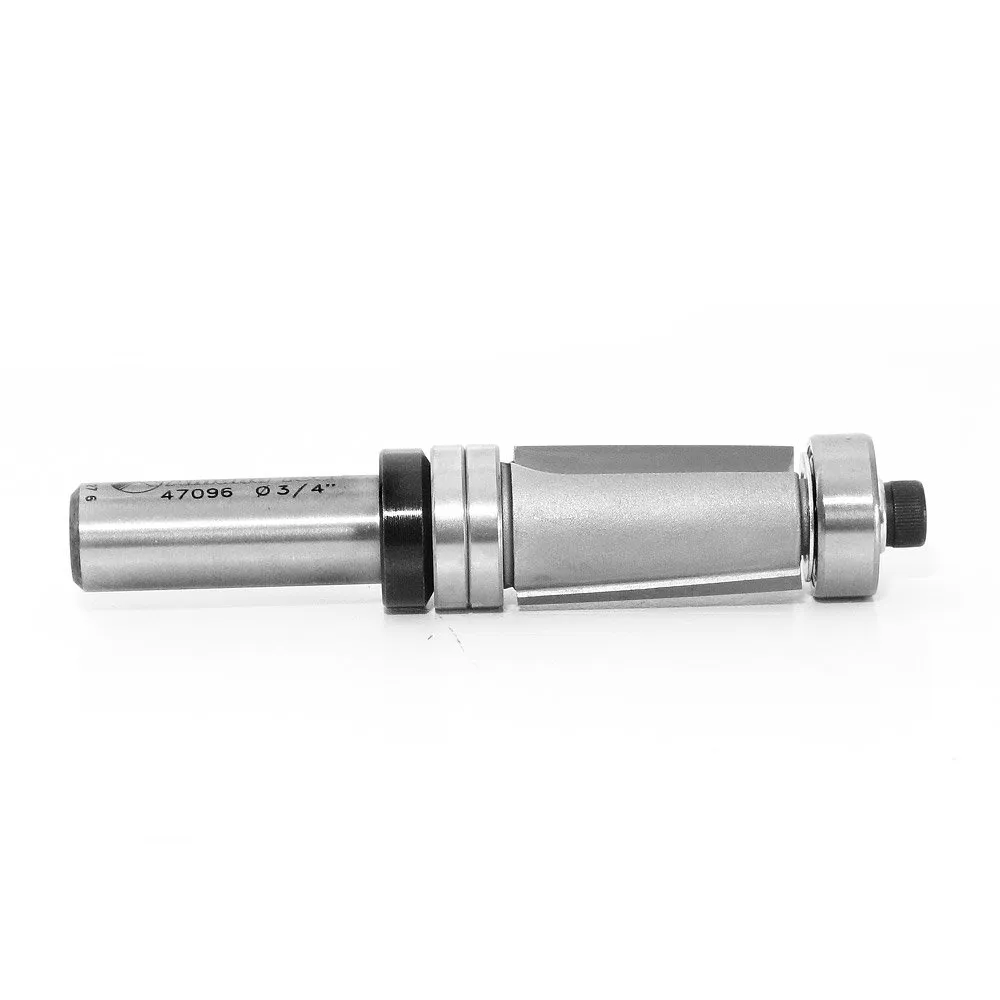

This adaptable double bearing Guided Cutter has down-shear design, which ensures a clean cut even in difficult materials. The two-bearing design allows the Cutter to be used with the template mounted on either side of the work and, consequently, it is possible to cut from either direction using only one template and without moving the template to the other side of the work piece. This is especially useful when cutting curves which run both with and against the grain., #47096, diameter (D) 3/4, cutting Height (B) 1-1/4, Shank (D) 1/2, overall length (L) 3-D/4, replacement bearing (u)47721 (l)47714, 47096 carbide Tipped down-shear Multi Trimmer 3/4 dia x 1-1/48 x 1/2 inch Shank with ball bearings

From the Manufacturer

Since 1972, Amana Tool has been producing router bits and has become the global leader in its field. In fact, the company was the first manufacturer to produce router bits according to the Holz BG German standard for safety and quality. This standard contains rules that determine the structure and quality of the tool's material in order to create the safest environment for the user.From its beginning, Amana Tool has always used the highest quality materials, and its tools are produced using unique technologies, a majority of which were developed and built by the company's engineers following decades of testing and experience.For example, Amana Tool uses carbon alloy steel for its router bits that contains vanadium particles. This improves the structural integrity of the steel and prevents corrosion and defects in the internal structure of the material that can lead to cracks and breaks. High-tech machinery processes the carbon alloy steel to manufacture the router bodies in a single clamping. This yields router bits with superior balance, centricity, precision and symmetry. This adaptable double bearing guided cutter has down-shear design, which endures a clean cut even in difficult materials. The two bearing design allows the cutter to be used with the template mounted on either side of the work and it is possible to cut from either direction using only one template and without moving the template to the other side of the work piece.

• Product Dimensions ‏ : ‎ 1 x 1 x 4 inches; 4.8 ounces
• Date First Available ‏ : ‎ November 30, 2008
• Manufacturer ‏ : ‎ Amana Tool
